In modern automotive and motorcycle lighting, home lighting, and even industrial applications, LED lights (Light Emitting Diodes) have long replaced traditional light sources to become the mainstream choice. With their high brightness, low energy consumption, long lifespan, and fast response time, LEDs have won the favor of both consumers and manufacturers worldwide. But do you really understand how LED lights work?

Today, BLIAUTO will take you on a deep dive into the working principles and the science behind LED lighting.

1. What Is an LED?

An LED is a semiconductor light-emitting device. When current passes through it, electrons in the semiconductor material recombine with holes, releasing energy in the form of light. Unlike traditional bulbs that emit light by heating a filament, LEDs use a "cold light source" method with minimal heat loss.

2. Core Structure of an LED Light

Although LED lights may appear simple on the outside, they are made up of several critical internal components:

Chip: The core of light emission, usually made of semiconductor materials like gallium arsenide (GaAs) or gallium nitride (GaN).

Bonding Wire: Conducts electricity into the chip, enabling it to emit light.

Lead Frame: Provides structural support and aids in heat dissipation.

Phosphor Layer: Adjusts the light color (especially for white LEDs, which are typically a combination of a blue chip and phosphor).

Encapsulation Shell: Protects the chip, enhances light output, and resists external impact.

3. Detailed Working Principle of LED Lights

The working principle of LED lights can be summarized in one sentence:

Electric current passes through semiconductor materials, causing electron-hole recombination and releasing photons, thus producing light.

1. Current Flow

When powered on, current flows from the positive to the negative terminal, through the PN junction inside the LED (a junction between positive and negative semiconductor materials).

2. Electron Recombination

Electrons from the N-type region are injected into the P-type region, where they recombine with holes. In this process, the energy released by the electrons is emitted as photons (light particles).

3. Light Wavelength

The wavelength (color) of the emitted light depends on the materials used in the chip. For example:

Gallium Nitride (GaN) → Blue light

Gallium Phosphide (GaP) → Green or red light

Add phosphor → White light

4. LED Driving and Control Technology

LEDs cannot simply be connected directly to a power source. They require stable current control, or they risk burning out or flickering. Common driving methods include:

Constant Current Drive: Keeps the current stable to prevent damage to the LED.

PWM Dimming: Adjusts brightness by changing the pulse width, allowing smart brightness control.

Smart APP Control: For example, BLIAUTO's APP-based control box allows remote adjustment of brightness, color, flashing modes, and more—perfect for off-road lights and motorcycle decorative lighting.

5. Advantages of LED Lights Compared to Traditional Sources

6. Increasingly Diverse Application Scenarios

LEDs are used far beyond just vehicle lighting:

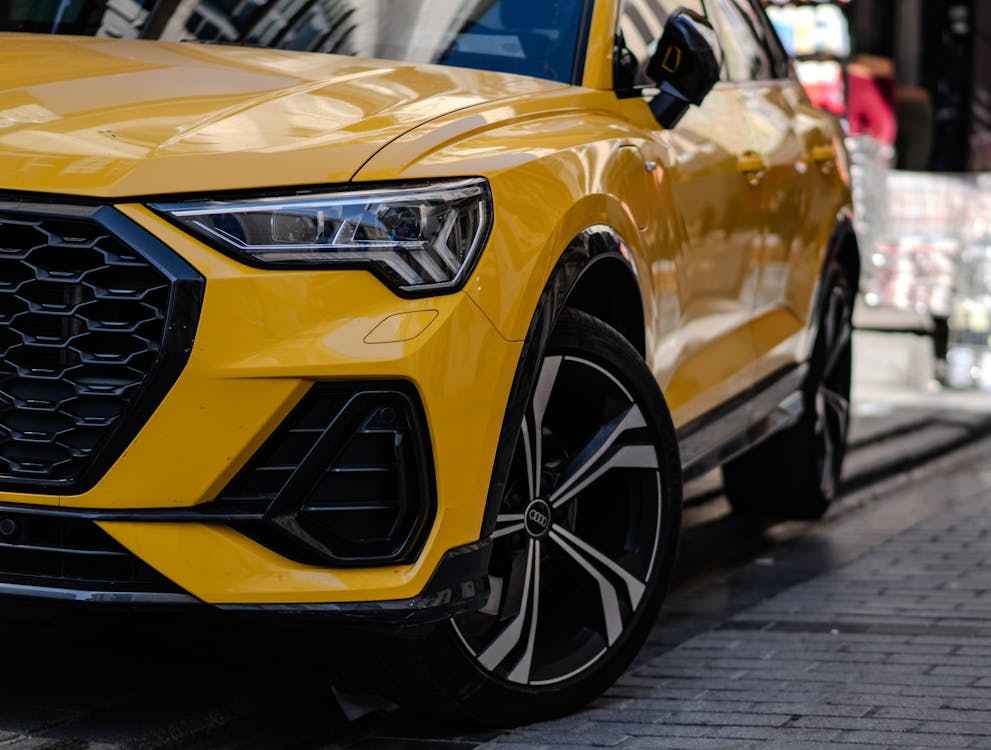

Automotive: Headlights, taillights, daytime running lights, ambient lighting

Motorcycles: Headlamps, turn signals, wheel lights

Off-road/Construction Vehicles: LED work lights, strobe lights

Home Lighting: Energy-saving bulbs, spotlights, LED strips

Industrial/Commercial: Warehouses, billboards, tunnels, etc.

BLIAUTO focuses on LED lighting solutions for vehicles, continuously optimizing performance and smart control systems to lead the industry toward more efficient and intelligent development.

7. Conclusion

The working principle of LEDs is rooted in micro-scale physics, but the impact is very real in our everyday lighting experience. From energy savings to smart control, from traditional uses to multi-scene applications, LED technology is rapidly permeating every corner of modern life.

Understanding how LED lights work helps consumers make smarter purchasing decisions—and gives us a glimpse into the exciting future of intelligent lighting.
