How to Install LED Rock Lights: An Expert Guide

Professionals seeking optimal LED rock light installation aim for safety, aesthetics, and enhanced visibility. This article covers how to install LED rock lights, addressing common pain points such as wiring complexity, optimal positioning, and integration with headlights.

Key Benefits of LED Rock Lights

- Enhanced Visibility: Provides crucial illumination for off-road driving and inspections.

- Durability: Most high-quality LED rock lights offer IP67/IP68 waterproof ratings ((https://www.iec.ch/)).

- Energy Efficiency: Draw less power than halogen alternatives, supporting longer battery life.

Main Tools & Materials Needed

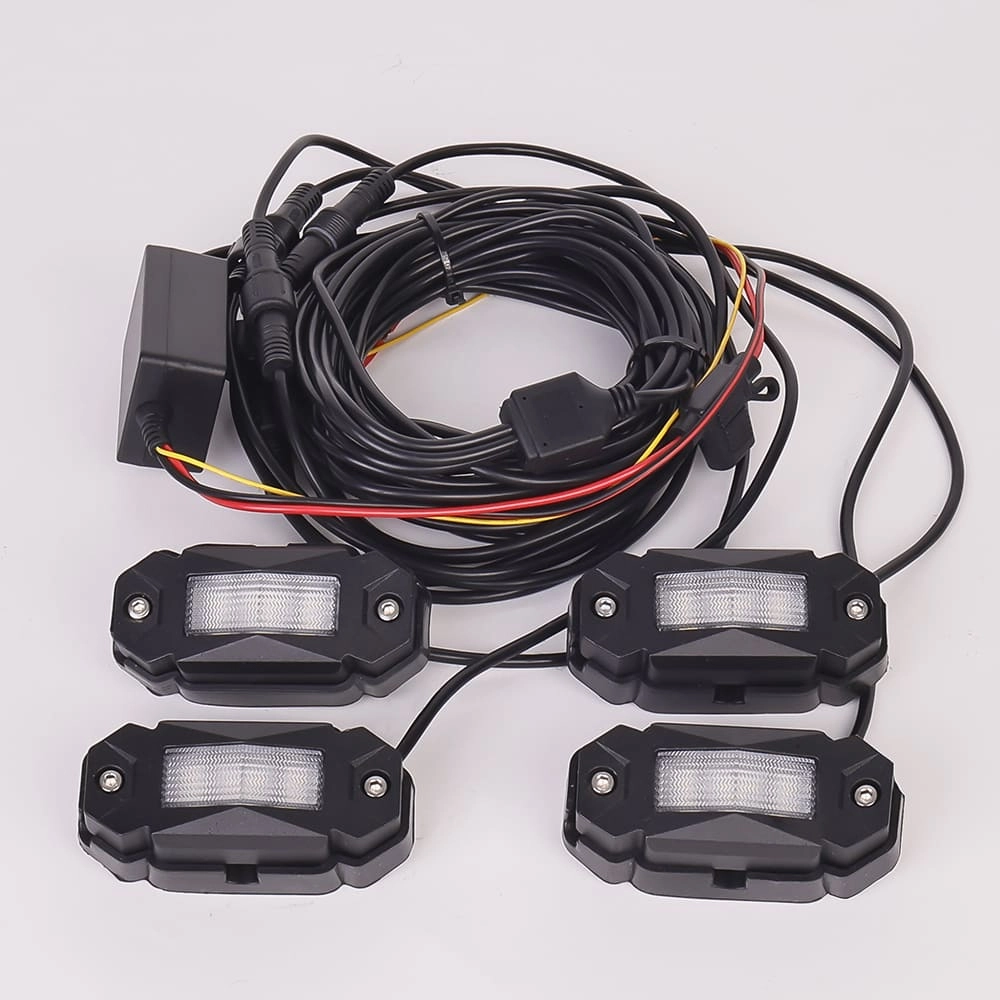

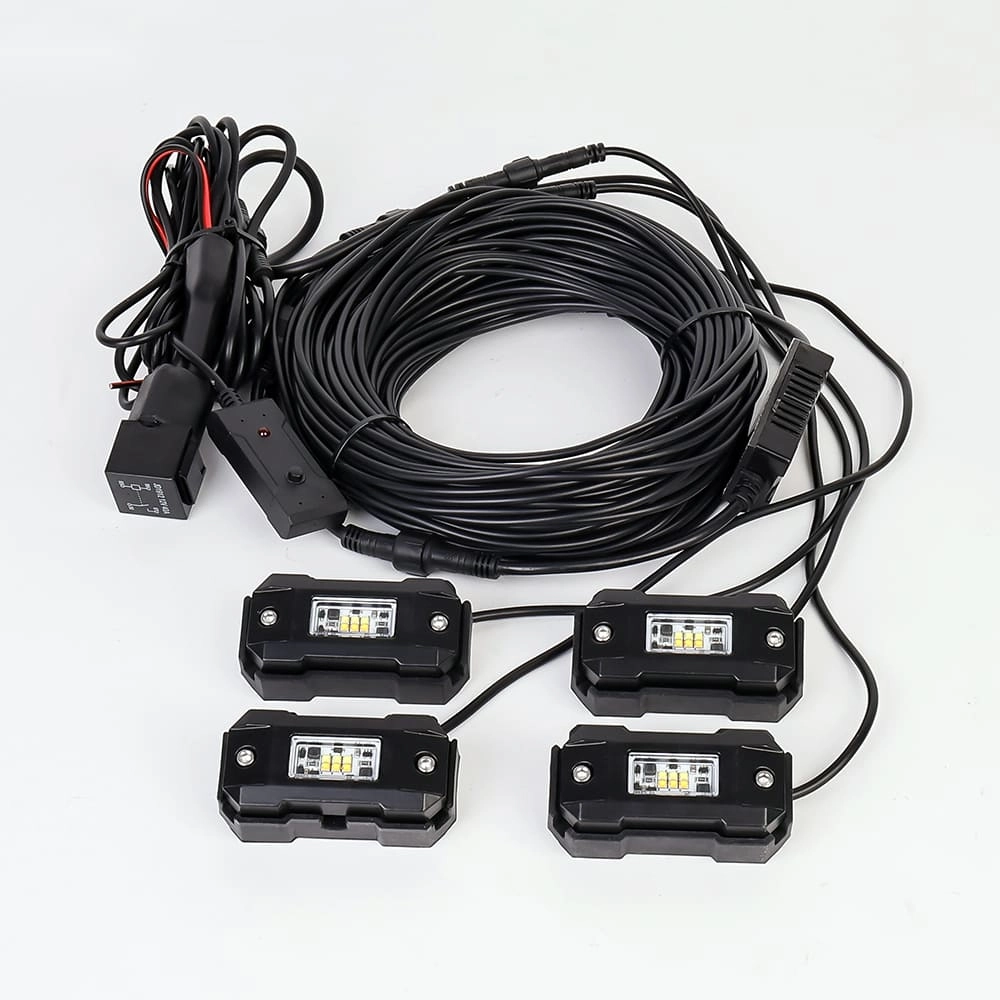

- LED rock light kit (with hardware and wiring)

- Power drill and assorted drill bits

- Wire strippers/crimpers

- Multimeter (for voltage verification)

- Silicone sealant (for waterproofing)

- Zip ties and mounting brackets

Step-by-Step Installation Process

1. Pre-Installation Preparation

- Inspect all Components: Ensure completeness of kit and check for damaged parts.

- Safety First: Disconnect vehicle battery to prevent electrical hazards ((https://www.osha.gov/)).

- Select Mounting Locations: Identify optimal spots on wheel wells or undercarriage for even lighting.

2. Mounting the LED Rock Lights

- Mark Drill Points: Use the included templates for accuracy.

- Drill Mounting Holes: Avoid existing vehicle wiring or fuel lines.

- Attach Lights: Use provided screws/bolts; reinforce with silicone sealant for waterproofing.

3. Electrical Wiring

- Route Harness: Plan wire routing away from heat, moving suspension, and sharp edges.

- Connect Power Source: Attach positive (red) wire to battery/auxiliary fuse box; negative (black) to ground point.

- Series vs Parallel: Follow manufacturer’s diagram—parallel wiring is typical for consistent voltage.

- Switch Installation: Choose an accessible location in the cab; ensure correct wiring and secure attachment.

- Testing: Reconnect battery and verify operation of all lights individually and as a group.

4. Final Inspection & Tidy Up

- Seal Exposed Connections: Apply heat shrink tubing and silicone as needed.

- Secure Cables: Use zip ties to fasten wires away from moving parts.

- System Check: Test under varying lighting conditions to confirm optimal coverage and performance.

Best Practices & Compliance

- Adhere to Manufacturer Specifications: Warranty depends on proper installation.

- Waterproofing: Essential for longevity, especially in harsh environments.

- Local Regulations: Verify compliance with local vehicle lighting ordinances ((https://www.nhtsa.gov/)).

Troubleshooting Common Issues

- Uneven Lighting: Revisit placement or check for faulty diodes.

- Flickering or Failure: Inspect for loose ground connections or voltage drop.

- Corrosion Prevention: Regularly inspect connections and reapply sealant as needed.

Reference Data and Sources

- *IEC 60529: Degrees of protection provided by enclosures (IP Code).*

- *NHTSA: Vehicle Lighting Regulations & Compliance, 2024.*

- *OSHA: Vehicle Electrical Systems Safety.*

By following these detailed steps for how to install LED rock lights, professionals can achieve robust, service-ready installations that comply with industry standards and meet the demands of high-performance vehicle applications.
