Install LED Motorcycle Light Bar in 5 Easy Steps

Motorcycle lighting isn’t just about style—it’s about visibility, safety, and function. Installing a motorcycle LED light bar is one of the best upgrades you can make for your ride. Whether you're cruising at night, caught in the rain, or navigating fog, a properly installed LED motorcycle light bar can make all the difference. This guide walks you through the installation process step-by-step, using technical know-how and practical tips from the auto lighting industry.

We'll cover the tools you’ll need, tips for mounting and wiring, and how to ensure you’re getting optimal performance from your led bar lights for motorcycles. Whether you're a DIY enthusiast or a first-time installer, by the end of this post, you’ll have everything you need to confidently install your own led light bar motorcycle. Let’s jump in.

Step 1: Choose the Right LED Motorcycle Light Bar

Before you even pick up a tool, it’s crucial to select the right motorcycle LED light bar for your specific bike and lighting needs.

A quality led motorcycle light bar should be compact, durable, and weather-resistant. Many riders opt for models with aluminum housings and polycarbonate lenses for longevity. Consider the wattage and beam pattern—flood, spot, or combo beam—depending on whether you prioritize broad illumination or long-distance projection. Also, ensure the light bar voltage (typically 12V for motorcycles) matches your bike's electrical system.

Different bikes call for different mounting options. Cruiser bikes, for instance, may benefit from fork-mounted bars, while adventure bikes may be better suited for crash bar or fairing mounts. Look for led bar lights for motorcycles that come with universal brackets or specific hardware tailored for your motorcycle model. When researching options, check with a trusted led light bar manufacturer to ensure you're not compromising on quality. Choosing a reliable brand also simplifies warranty and support.

Step 2: Prepare Tools and Understand Your Bike’s Wiring

With your motorcycle LED light bar in hand, preparation is the next vital step. Poor wiring and ill-equipped tools often lead to inefficient installations or worse—damage to your bike’s electrical system.

You’ll need basic tools: a screwdriver set, pliers, wire strippers, electrical tape, multimeter, and a soldering iron or crimp connectors. Also prepare zip ties or wire loom to secure wiring later. If your led motorcycle light bar doesn’t come with a relay harness, consider buying one—it reduces load on your bike’s circuits and provides a cleaner installation. Most light bars draw between 10–30W, and directly wiring them without a relay can tax your existing circuits.

Study your bike’s wiring diagram, often available in the owner’s manual or from online forums. Locate the battery, fuse box, and ignition wire. Understanding these locations is key to routing wires safely and determining the best connection points. Bikes with CAN bus systems may require adapters or resistors to prevent error codes or flickering. Before moving to the next step, disconnect the battery to avoid electrical shorts.

Step 3: Mount the LED Light Bar Securely

Now that you're ready to install, the first physical step is mounting your LED light bar motorcycle securely to your bike. A good mount not only ensures proper beam alignment but also protects your light bar from unnecessary vibrations and weather exposure.

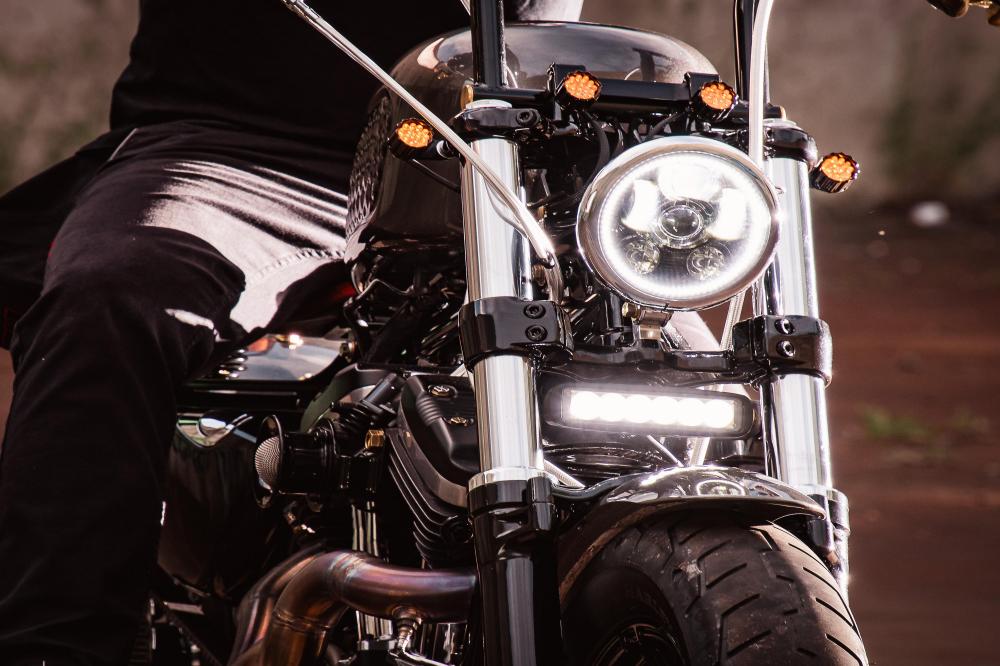

Begin by dry-fitting the motorcycle LED light bar in your preferred mounting location. Common places include the front fork, crash bars, below the headlight, or above the front fender. If your bar comes with adjustable brackets, angle it slightly downward to avoid blinding oncoming traffic. Once you're happy with the position, mark the mounting holes using a pencil or masking tape. Drill carefully if needed, ensuring you’re not damaging any internal components or wires.。

Use stainless steel bolts and lock washers to minimize corrosion and loosening from vibrations. Apply thread locker (like Loctite) to keep the fasteners in place. Once the led motorcycle light bar is mounted, do a quick wiggle test. If it moves even slightly, reinforce it before proceeding to wiring. A poorly mounted light bar can shift over time, affecting your beam direction and possibly damaging the unit.

Step 4: Wire the Light Bar to the Power System

This is the most technical step, but with some patience and precision, anyone can do it. Wiring your motorcycle LED light bar correctly ensures safe operation and extends the life of the light.

First, decide how you want to power the light. You have two main options: connect directly to the battery with a switch, or tap into an ignition-controlled circuit so the led motorcycle light bar turns on only when the bike is running. For safety and convenience, the latter is usually preferred.

Install a relay and fuse between the light bar and the power source. The relay ensures your switch doesn’t carry high current, reducing the risk of failure. Use 14- or 16-gauge automotive-grade wire for durability. Route the wires neatly along the frame, avoiding hot components like the engine or exhaust. Secure wires using zip ties or wire loom to prevent chafing.

Connect the positive (red) and ground (black) wires from your led light bar motorcycle to the relay and power source. Double-check all connections with a multimeter before reconnecting the battery. A clean and tight wiring job ensures your light bar will perform consistently, especially in rugged riding conditions.

Step 5: Test, Adjust, and Finalize Installation

Once your motorcycle LED light bar is mounted and wired, it’s time to test the system and make final adjustments. This final step ensures everything functions as intended.

Reconnect the battery and activate the switch. If the led motorcycle light bar doesn’t illuminate, check the fuse, relay, and ground connections. If everything lights up, inspect the beam pattern. The beam should be focused on the road ahead without shining into the eyes of oncoming drivers. If the light is misaligned, loosen the mounting bolts slightly, adjust, and retighten.

Take your bike for a short ride at dusk to evaluate real-world performance. Check for vibrations, flickering, or loose connections. If all is well, tidy up the installation—trim any excess zip ties, wrap exposed wires in protective loom, and confirm the switch is mounted within easy reach. A neat installation not only looks professional but also makes future maintenance easier.

Congratulations! Your led bar lights for motorcycles are now fully installed. With improved visibility and style, your night rides just got a whole lot safer and more enjoyable.

Frequently Asked Questions About LED Motorcycle Light Bars

To wrap things up, let’s look at some common questions and expert answers that riders often have before or after installing a motorcycle LED light bar.

Can I install a LED light bar without a relay?

Technically, yes—but it’s not recommended. Without a relay, the full current flows through your switch, increasing the risk of overheating and failure. A relay setup ensures long-term safety and performance for your led motorcycle light bar.

Will an LED light bar drain my motorcycle battery?

If installed correctly with a switched power source or ignition circuit, your led light bar motorcycle will only draw power when the bike is on. However, always ensure your battery is in good health and monitor usage if you have multiple accessories.

Are LED light bars legal on motorcycles?

This depends on your local laws. In most regions, led bar lights for motorcycles are legal as long as they don’t dazzle other drivers and are used appropriately (e.g., off-road only or during certain conditions). Always verify with your transportation authority.

What are the advantages of LED over halogen for motorcycles?

LEDs are more energy-efficient, last longer, and produce a brighter, whiter light. This makes them ideal for motorcycles, where electrical power is limited. A motorcycle LED light bar also generates less heat than halogens, which protects wiring and components.

How do I choose a reliable LED light bar manufacturer?

Look for brands with proven durability, waterproof ratings, and customer reviews. Reputable led light bar manufacturers often provide better warranties and technical support. Avoid overly cheap models, as they may lack proper heat dissipation and longevity.

Final Thoughts: Light Up the Road with Confidence

Installing a motorcycle LED light bar might seem daunting at first, but with the right guidance, tools, and a bit of patience, it's a highly rewarding upgrade. From safer night rides to improved bike aesthetics, a well-installed led motorcycle light bar offers long-term value and performance. Follow the five steps in this guide and enjoy brighter, bolder adventures ahead.
