Why Is It Brighter? BLIAUTO Analyzes the Chip and Optical Lens Technology of High-Brightness Rock Lights

When you're behind the wheel of your beloved Jeep, facing an unknown rocky trail in pitch darkness, a powerful, clear, and reliable beam of light is the most solid barrier between you and danger. The market is flooded with various Jeep rock lights all claiming to be the "brightest." So why does BLIAUTO's light consistently stand out, becoming the undeniable leader in the dark?

The answer is far more complex than a simple "lumen" number. True superior brightness is a systematic engineering feat—a perfect symphony of cutting-edge chip technology and sophisticated optical design. Today, let's dive inside BLIAUTO's glow and explore the scientific origin of what makes it "brighter."

Chapter 1: The Heart of Light – The Micro Revolution of the LED Chip

If light is the soul of a rock light, then the LED chip is the beating heart of that soul. The strength of this heart directly determines the potential of the light.

1.1 Beyond Size: The "Native Quality" of the Chip

Many brands emphasize "large-size chips," but this is a crude metric. BLIAUTO understands that the key lies in the native quality of the chip.

Material and Wafer: We use high-quality Gallium Nitride (GaN) on a sapphire substrate, ensuring highly complete crystal structure and low defect density. This is like using high-grade cement and steel to build a skyscraper—the foundation is more stable, electrical current passes through more efficiently, and less wasteful heat is generated.

Electrode Design: The micron-level electrode structure inside the chip is optimized to minimize operating voltage and series resistance. Lower resistance means that for the same input power, more electrical energy is converted into light energy, rather than useless heat. This is the physical foundation for BLIAUTO's high luminous efficacy (lumens produced per watt of power).

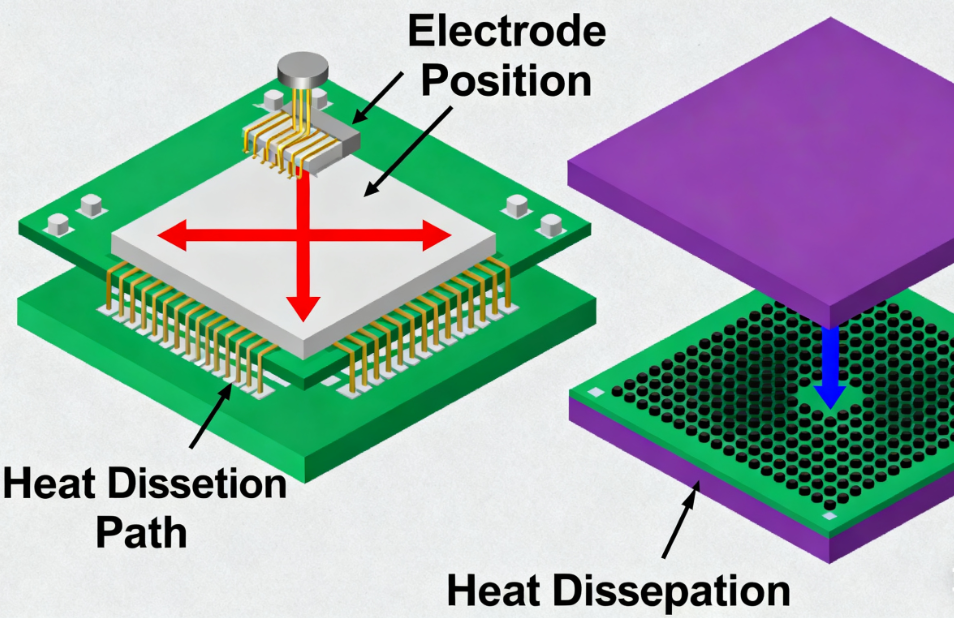

1.2 Core Technology: The Dimensional Advantage of Flip-Chip Structure

While most products still use traditional vertical chips, BLIAUTO has fully embraced the more advanced Flip-Chip technology. This is the key to achieving a leap in both brightness and reliability.

The Bottleneck of Traditional Vertical Chips: In a vertical chip, the electrodes are on top of the light-emitting surface, blocking some of the light. Furthermore, heat must travel through the sapphire substrate to reach the base plate, resulting in a long, inefficient thermal path. This becomes a constraint on performance and lifespan under high-power drive.

The BLIAUTO Flip-Chip Advantage:

Zero Electrode Shading: Light generated by the emitting layer exits directly, unobstructed by electrodes, resulting in a larger effective light-emitting area and instant higher initial brightness.

Ultra-Short Thermal Path: The chip is directly connected to a ceramic or metal base plate with excellent thermal conductivity via solder bumps. Heat is rapidly conducted away along the shortest path. This allows the chip to withstand higher drive currents at a lower junction temperature, unleashing a more powerful and stable beam.

1.3 Precision Driving: Making the Chip Sprint, Not Struggle

A powerful heart needs a sophisticated nervous system to command it. BLIAUTO employs customized constant-current driver ICs to provide precise, clean, and efficient power to the LED chips.

Rejecting "Inflated Ratings": Poor-quality driver boards cannot provide stable voltage and current, preventing the chip from operating at its rated power. The claimed lumen output becomes a castle in the air. BLIAUTO's driver solution ensures every chip performs at its peak.

Intelligent Protection: Our driver circuitry integrates over-voltage, over-current, reverse polarity, and surge protection, ensuring stability and reliability even within the complex electrical environment of a vehicle, safeguarding against unexpected shocks.

Chapter 2: The Art of Shaping Light – The Magic of Optical Lenses

With a powerful light source secured, the next step is to harness it efficiently and precisely. Uncontrolled light is scattered and weak. The optical lens is the "light shaper" that forges the raw glow into a sharp blade.

2.1 Material Choice: The Performance Debate Between PC and PMMA

Lens material directly affects light transmittance, weather resistance, and durability.

Standard Polycarbonate (PC): While tough, standard PC material is prone to aging and yellowing under long-term exposure to UV light and high temperatures, leading to a sharp decline in transmittance. After a year or two, the brightness is significantly "diminished."

The BLIAUTO Choice: Optical-Grade PMMA (Acrylic)

Ultra-High Transmittance: Optical-grade PMMA boasts a light transmittance of over 92%, far exceeding standard PC. It maximizes the transmission of light generated by the chip with minimal loss.

Superior UV Resistance: It has inherent strong resistance to ultraviolet light, maintaining clarity and transparency over the long term, preventing lumen depreciation due to yellowing, ensuring the light's "true colors" are projected.

Surface Coating Process: We apply a nano-hardened coating to the outer surface of the PMMA lens. This not only enhances scratch resistance but also effectively reduces surface light reflection, further improving light output efficiency.

2.2 Beam Pattern Design: Lighting the Way Scientifically

The value of a rock light is not in blinding oncoming traffic, but in clearly illuminating your own path. BLIAUTO scientifically designs beam patterns based on real-world off-road scenarios.

Flood Lens:

Characteristics: Uses Fresnel patterns or wide-angle scattering to spread light over a broad area.

Application: Ideal for illuminating the sides and immediate vicinity of the vehicle, eliminating blind spots. Crucial during rock crawling to see the terrain around the wheels clearly and avoid damage to bumpers or side steps.

Spot Lens:

Characteristics: Employs Total Internal Reflection (TIR) technology. Light undergoes multiple internal reflections within the lens before being emitted in a nearly parallel beam with a very small dispersion angle, creating a concentrated, long-distance spot.

Application: Used to illuminate distant obstacles or scout the path ahead, allowing the driver to anticipate terrain changes.

Combo Beam Pattern:

Characteristics: A star design from BLIAUTO. Within a single light, precision lens modules create a focused spot in the center for distance, surrounded by a wide flood at the edges for peripheral coverage.

Value: Achieves "multiple functions in one light." There's no need to frequently switch between lights to gain both long-distance vision and broad peripheral awareness, significantly enhancing driving safety and convenience.

2.3 The Photometric Data: The Little-Known Performance Map

For professionals, the photometric data (or beam distribution graph) is the core secret to evaluating the quality of a light's optical design. It's like a "map of the light," precisely depicting the intensity distribution of light in every direction in space. Every BLIAUTO product features photometric data optimized for its specific scenario, ensuring light energy is precisely directed where it's needed most, not wasted into the useless sky or as glare.

Chapter 3: The Intelligence of Synergy – The Perfect Fusion of Chip and Lens

Even the best chip and the best lens, if merely stacked together, cannot achieve ultimate brilliance. BLIAUTO's engineering wisdom is embodied in the deep integration of the two.

Integrated Light Engine Design: From the initial design phase, our R&D team synchronizes simulations and matches the light source characteristics of the chip (like emitting area, viewing angle) with the optical requirements of the lens. This ensures the "focal point" of the lens perfectly aligns with the "light center" of the chip, maximizing light capture and utilization efficiency. It's like matching a custom engine with the perfect turbocharger system, achieving a 1+1>2 effect.

Integrated Thermal Management Design: Once the heat from the chip is efficiently conducted away, BLIAUTO's lamp body structure and heat sink fins ensure it is rapidly dissipated into the air. We even consider the thermal expansion coefficient of the lens material to guarantee the stability of the entire light engine structure under extreme cold or heat, preventing stress cracks or beam pattern shift due to expansion and contraction.

Frequently Asked Questions

Why do some lights with high claimed lumen ratings not appear bright in practice?

This typically involves three "traps": ① Inflated Lumen Claims, not tested under standard conditions; ② Low System Efficacy, possibly due to inferior drivers or lenses, causing significant loss of the chip's light within the system itself; ③ Poor Beam Pattern Design, where light is scattered and unfocused, resulting in weak visual impact. BLIAUTO publishes system lumens, representing the actual, final light output, which is true and reliable.

Does high brightness mean high heat and short lifespan?

On the contrary. It is the exceptional thermal management design (like Flip-Chip, high-performance thermal materials) that ensures BLIAUTO lights maintain a very low junction temperature even at high brightness. The lifespan of an LED chip is primarily determined by its operating temperature—lower temperature means longer life. Therefore, BLIAUTO's high brightness coexists with long lifespan and high reliability.

How should I choose a beam pattern? Is the Combo beam a universal solution?

It depends on your primary use. Pure rock crawling may favor Flood patterns. High-speed desert running requires Spot for distance. For general overlanding and trail riding, the Combo beam is the best all-around choice. BLIAUTO also offers kits with different beam patterns for flexible user configuration.

What's the difference between IP68 and IP69K ratings? Which is more important?

IP68 means fully dust-tight and protected against prolonged immersion in water. IP69Kindicates protection against high-pressure, high-temperature water jetting. For an off-road vehicle, both are crucial. IP68 ensures safety in water crossings and heavy rain, while IP69K allows you to clean the lights directly with a pressure washer after mudding without causing damage. BLIAUTO products meet or exceed these rigorous standards.

Conclusion: Brightness is the Testament of Science and Craftsmanship

When you choose BLIAUTO, you are not just selecting a claimed "brightest" number. You are choosing pure light energy originating from the chip substrate, intelligent beams precisely shaped by optical lenses, and a reliable engineering philosophy ingrained in every design detail.

This is the light that cuts through the deepest darkness, leaving every rut and rock with nowhere to hide. This is the light that BLIAUTO dedicates to all explorers—the sturdiest courage and the most reassuring protection.
