The Ultimate Guide to Offroad Pod Lights: 2026 High-Performance Trends & Setup

Offroad pod lights are compact, modular LED auxiliary lights designed to provide targeted illumination for specific trail conditions, bridging the gap between factory headlights and large light bars.

Unlike static factory lighting, these versatile units allow off-roaders to customize their lighting setup for high-speed desert running, low-speed rock crawling, or inclement weather. According to a 2024 report by Allied Market Research, the global off-highway vehicle lighting market was valued at $1.1 billion, driven by a massive shift toward safer, high-efficiency LED technology. As we approach 2026, the technology is evolving rapidly from simple on/off switches to intelligent, integrated systems.

What Are Offroad Pod Lights and How Do They Improve Safety?

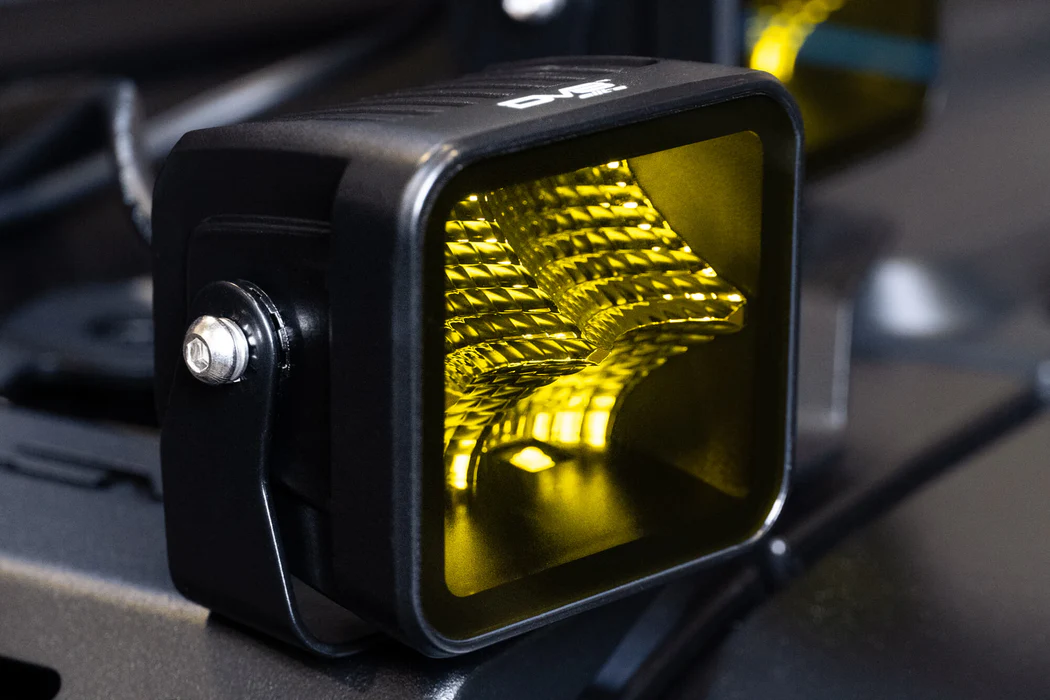

Offroad pod lights are high-output, square or round LED fixtures, typically 2 to 5 inches in diameter, that improve trail safety by filling dark zones left by standard headlights.

They are essential for night wheeling because factory low beams are designed for paved roads and often lack the vertical and horizontal spread needed for uneven terrain. Pods can be aimed independently to illuminate ditches, tree lines, and distant obstacles.

· Targeted Illumination: Direct light exactly where you need it—whether it's 500 meters down the trail or 50 feet to your immediate side.

· Redundancy: If one light fails or breaks, others remain operational, unlike a single large light bar.

· Versatility: Mounting options range from bumpers and A-pillars to roof racks and backup lights.

Quick Summary: The 30-Second Guide to Choosing Pods

To choose the right pods, you must match the beam pattern and color temperature to your specific driving environment and speed.

For those in a rush, here is the cheat sheet for building an effective lighting package:

· Best for Speed: Select Spot Beams to see obstacles far in advance.

· Best for Cornering: Select Ditch Lights mounted on A-pillars to see around turns.

· Best for Dust/Snow: Select Amber Lenses (3000K) to cut through particulate matter.

· Best for Durability: Ensure the housing has an IP69K waterproof rating for high-pressure washdowns.

The Physics of Optics: Spot, Flood, and Driving Patterns Explained

Beam pattern geometry refers to the specific angle and shape of the light emitted by the reflector or optic, determining whether the light throws far (spot) or wide (flood).

Understanding these angles is critical because mounting a floodlight on your roof can cause glare on your hood, while mounting a spotlight low on the bumper limits its range. The correct setup uses a mix of patterns to create a "wall of light."

· Spot Beams (10° or less): Tight, pencil-like beams designed for maximum distance. These should be mounted high or centrally to minimize shadows.

· Flood Beams (40°–60°): Wide, short-range light. Ideal for backup lights or illuminating a campsite.

· Driving/Combo Beams: A hybrid pattern compliant with some auxiliary high-beam standards, offering a balance of width and distance.

· Scene Lighting (120°+): Ultra-wide dispersion for working around the vehicle or setting up camp.

2026 Innovation: The Rise of Smart Pods and Wireless Control

The newest trend in offroad lighting is the integration of pods with vehicle CAN bus systems, allowing lights to adjust automatically based on speed, steering angle, or terrain mode.

Gone are the days of drilling holes in your dash for simple toggle switches. The 2025-2026 market is moving toward "smart ecosystems" where lights are software-controlled. For example, some new systems allow lights to dim automatically when the vehicle slows down or change color from white to amber via a smartphone app.

· Active Cornering: Lights that dim or brighten on one side as you turn the steering wheel.

· RGBW Technology: Customizable backlight colors for aesthetics (car shows) that switch to pure white for trail use.

· Wireless Management: App-based controllers (like those from Garmin or Switch-Pros) that eliminate complex wiring harnesses.

· Adaptive Output: Thermal sensors that dim the LEDs if the housing gets too hot while the vehicle is stationary.

Expert Tips: Mounting and Installation

The most critical installation factor is using vehicle-specific ditch light mounting brackets to position peripheral lights at the base of the A-pillar without obstructing the driver’s view.

Poor mounting is the number one cause of lighting dissatisfaction. If a light is mounted too far forward on the hood, the spill light will reflect off the paint and blind the driver. If it is mounted too low, rocks and brush will block the beam.

· A-Pillar (Ditch Lights): Angle these 45 degrees outward to illuminate the sides of the trail.

· Bumper Top: Ideal for SAE J583 compliant pods (fog lights) which must be mounted low to cut under the weather.

· Roof Rack: Best for spot beams, but requires "scene" or "cut-off" lenses to prevent hood glare.

· Wiring Safety: Always use a relay harness to prevent overheating your factory switch wiring.

Understanding Durability: IP68 vs. IP69K Ratings

The IP69K waterproof rating is the highest protection standard available, certifying that a light can withstand high-pressure, high-temperature steam cleaning at close range.

While most consumer electronics are IP67 or IP68 (submersible), off-road lights face different threats. You aren't just dropping them in a pool; you are blasting them with a pressure washer after a muddy trail run. IP69K ensures the seals won't fail under 1450 PSI of water pressure at 80°C.

· IP67: Dust tight and immersion up to 1 meter for 30 minutes.

· IP68: Continuous immersion beyond 1 meter (manufacturer specified).

· IP69K: Protection against high-pressure steam jets—critical for vehicles that are frequently washed.

Light Science: Amber vs. White

Amber light penetration science relies on the principle that longer wavelengths (yellow/amber) scatter less effectively than shorter wavelengths (blue/white) when hitting airborne particles.

While white light (5000K-6000K) appears brighter and mimics daylight, it causes significant "backscatter" or glare in fog, dust, or snow. This is the "wall of white" effect. Amber light (3000K) reduces this glare, improving contrast and depth perception for the driver.

· White (5000K+): Best for clear nights, high speeds, and maximum detail.

· Selective Yellow/Amber (3000K): Essential for dust, fog, rain, and snow.

· Lens Filters: Many modern pods allow you to snap on amber covers, giving you two lights in one.

Frequently Asked Questions (FAQ)

Are offroad pod lights street legal?

Generally, no, unless they are specifically SAE J583 compliant pods designed for use as fog lights.Standard offroad lights are too bright and lack the beam cutoff required to prevent blinding oncoming drivers. SAE-compliant lights have a sharp cutoff line and can be used legally on-road if aimed correctly.

What is the best position for a spot beam?

Spot beams should be mounted as high as possible, such as on a roof rack or upper bumper bar.Height allows the long-distance beam to reach over undulating terrain without creating long shadows behind small rocks or bumps.

How many lumens do I need?

For a pair of auxiliary pods, 3,000 to 5,000 effective lumens is a strong baseline for trail use.However, candela (beam intensity) is more important than lumens for distance. A light with high candela will throw light further than a light with high lumens but poor focus.

Can I hook pod lights directly to my battery?

You should always use a fused relay harness when connecting lights to the battery.Connecting directly without a fuse risks an electrical fire if the wire shorts out. A relay ensures the high current goes from the battery to the lights without overloading your dashboard switch.
