The Ultimate Guide to Rock Lights for Trucks: Installation, Selection & Beyond (2026 Edition)

Truck underglow lights, specifically rock lights, have evolved from niche off-road accessories to essential safety tools for modern truck owners. Whether you are navigating treacherous trails at night or showcasing a custom build at a meet, the right lighting setup defines your vehicle's capability and character.

What Are Rock Lights for Trucks and Why Are They Essential?

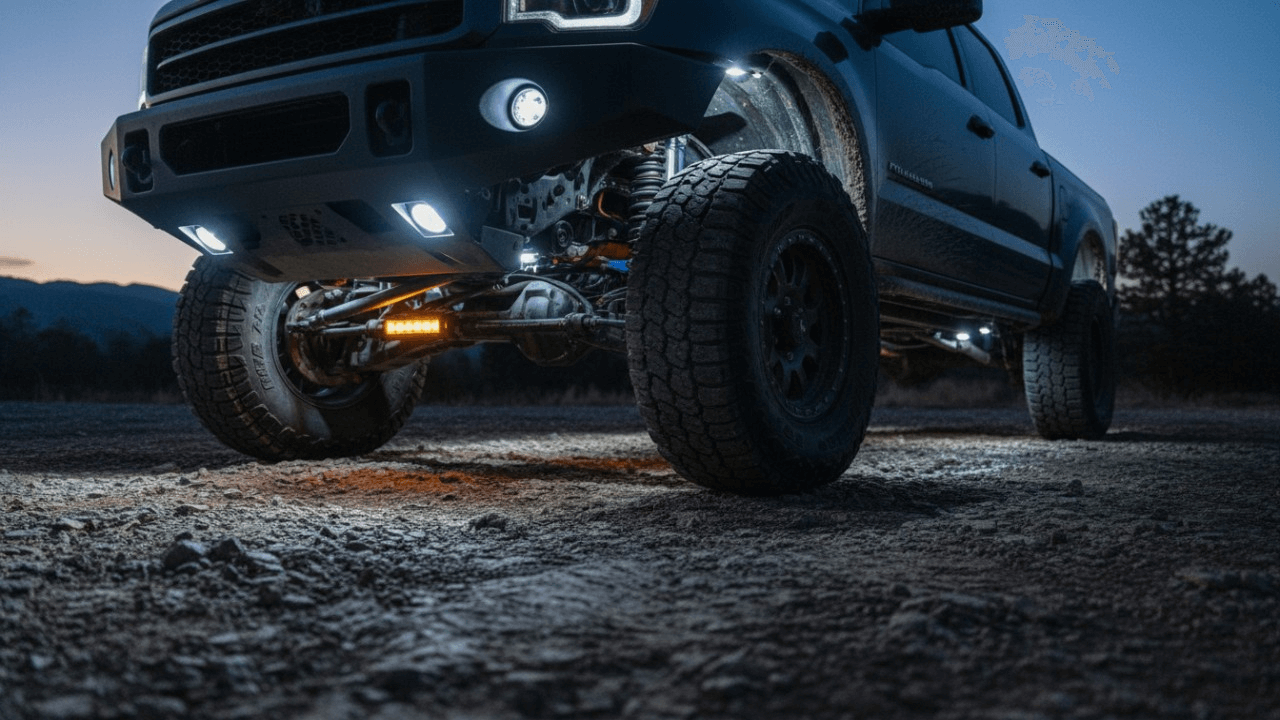

Rock lights are compact, high-intensity LED systems mounted in wheel wells and under the chassis to illuminate the immediate terrain beneath the vehicle.

Unlike standard headlights that project forward, these lights eliminate blind spots directly under your truck. This specialized illumination is critical for off-road lighting kits, allowing drivers to see rocks, tree stumps, and deep ruts that could damage suspension components.

Why You Need Them

· Obstacle Avoidance: Prevents costly damage to differentials and oil pans.

· Spotter Visibility: Helps co-pilots guide wheel placement on technical crawls.

· Aesthetics: Adds a customizable, aggressive look for truck shows.

· Camp Utility: Provides perimeter lighting for setting up camp or changing tires at night.

Key Takeaways: Your Essential Rock Light Overview

Rock lights serve a dual purpose: critical safety for nighttime off-roading and aesthetic customization for vehicle enthusiasts.

Before purchasing, understand that quality varies significantly between budget and premium brands. Focus on ingress protection (waterproofing) and beam width.

· Safety First: Their primary function is preventing trail damage.

· Durability Matters: IP68 or IP69K ratings are non-negotiable for serious off-roaders.

· Control is Key: Modern systems offer Bluetooth, app-based color syncing, and white-light override modes.

· Installation: Achievable as a DIY project but requires careful wiring to prevent battery drain.

Why Every Truck Owner Needs Rock Lights: Beyond the Aesthetics

While often associated with show trucks, rock lights provide functional utility that enhances the safety and usability of any working or adventure vehicle.

For the daily driver or job site truck, truck accessory lighting like this offers practical benefits beyond the trail.

· 1. Nighttime Repairs: Illuminates the underside of the truck if you need to inspect a noise or leak.

· 2. Safe Entry/Exit: Acts as puddle lights, showing you where you are stepping in mud or snow.

· 3. Cargo Management: improved visibility when loading trailers or securing gear in the dark.

· 4. Resale Value: High-quality, professionally installed lighting kits can increase vehicle desirability.

Choosing the Best Rock Lights for Your Truck: A Buying Guide

The best rock lights combine high lumen output, wide beam angles (150°+), and robust waterproofing to withstand harsh environments.

When selecting off-road lighting kits, look past the flashy colors and focus on the technical specifications that ensure longevity.

Critical Selection Criteria

1. Ingress Protection (IP Rating):

IP68: Dust-tight and submersible (standard).

IP69K: Dust-tight and resistant to high-pressure, high-temperature wash-downs (superior).

2. LED Technology:

RGB: Red, Green, Blue mixing. (Great for shows).

RGBW: Adds a dedicated White chip. (Essential for functional trail use).

3. Construction: Look for aluminum housings over plastic for better heat dissipation and impact resistance.

4. Control System: Ensure the Bluetooth app is stable and offers a "pure white" mode for inspection use.

According to market research by Precedence Research (2025), the global off-road vehicle lighting market is projected to reach approximately $2.6 billion by 2034, driven by a demand for durable, energy-efficient LED solutions.

Optimal Placement: Where to Install Rock Lights for Maximum Effect

Strategic placement ensures 360-degree coverage without creating blinding glare for the driver or spotter.

Mounting lights in vulnerable areas without protection can lead to failure. Aim for high points that cast light down and outward.

· Inside Wheel Wells: (4 Pods) Mount at the top center of the fender liner to illuminate the tire contact patch.

· Rockers/Frame Rails: (4 Pods) Place between the wheels to light up the ground along the truck's wheelbase.

· Front/Rear Bumpers: (2-4 Pods) Illuminates approach and departure angles.

· Diff/Axle Lighting: (Optional) Highlights suspension components for show builds.

DIY Installation Guide: How to Install Rock Lights Like a Pro

A successful LED rock lights installation requires patience, proper wire routing, and the use of relays to protect your vehicle’s electrical system.

Follow this structured approach to ensure a clean, reliable install that won't fail on the trail.

Step-by-Step Installation

1. Test Before Mounting: Connect the kit to a 12V source to ensure all pods and the controller work.

2. Mock-Up Locations: Use masking tape to temporarily hold pods in place. Check light spread in a dark garage.

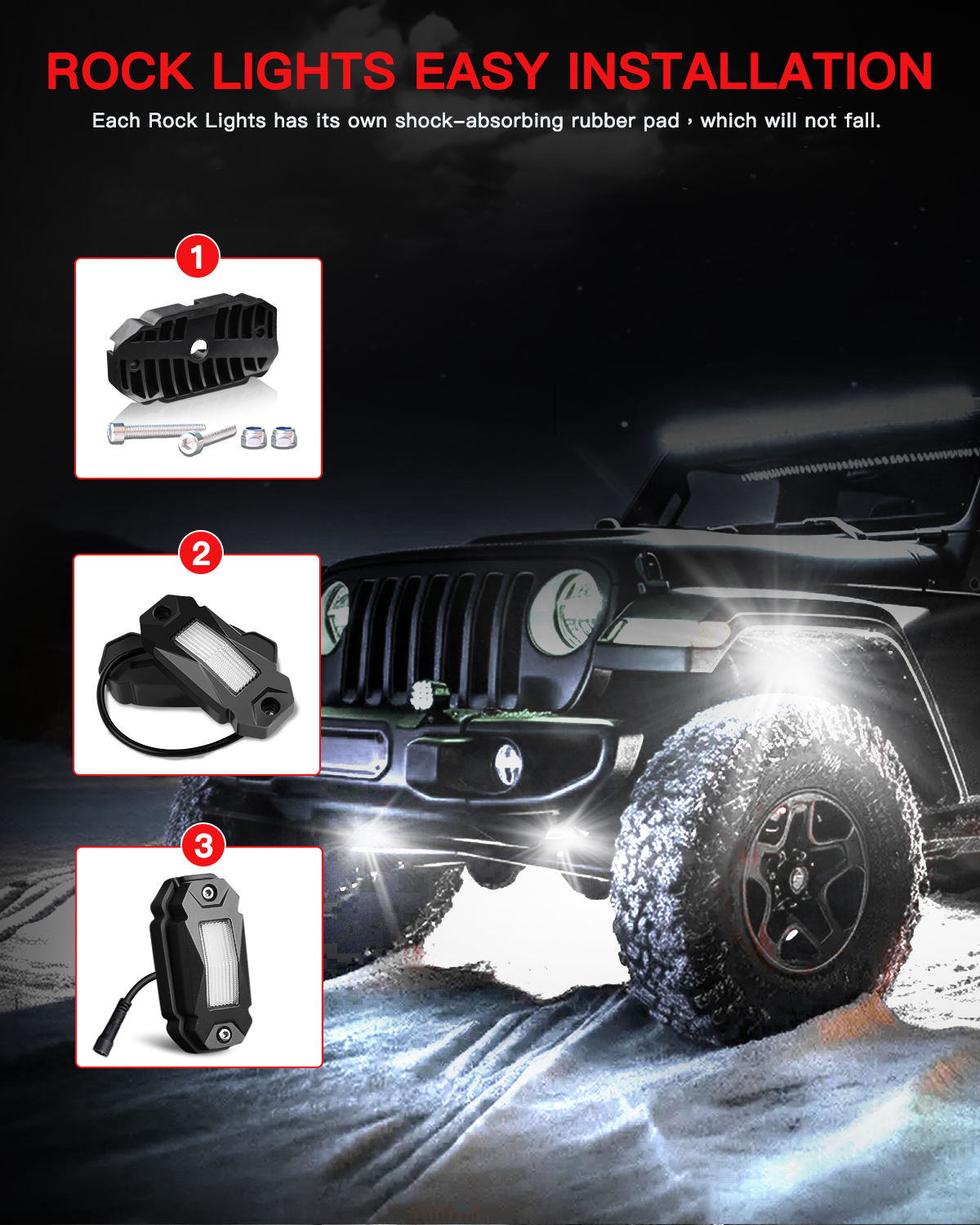

3. Mounting:

Drill holes for wiring (use rubber grommets to prevent chafing).

Secure pods using stainless steel self-tapping screws and bolts.

4. Wiring Path: Route cables along factory wire looms. Avoid moving parts (driveshafts) and hot areas (exhaust).

5. Power Connection:

Connect the positive wire to an accessory fuse or relay.

Connect the ground to a clean, bare metal chassis point.

Pro Tip: Use a dedicated switch panel (like an Auxbeam or Switch-Pros) for easy cockpit control.

Expert Tips for Optimizing Your Rock Light Setup

To maximize performance, use dedicated pure-white LEDs for trail riding and reserve colors for stationary events.

· Use Dielectric Grease: Apply to all connections to prevent water intrusion and corrosion.

· Zip Tie Hygiene: Secure wires every 6 inches. Loose wires get snagged on branches.

· Anti-Flicker Modules: Required for some modern trucks (like newer RAMs or F-150s) to prevent CAN-bus errors.

· Voltage Cut-off: Install a low-voltage disconnect to prevent the lights from draining your battery if left on.

Avoiding Common Pitfalls in Rock Light Installation

The most common failure point is poor grounding, followed by mounting lights in areas susceptible to direct impact from rocks.

· Mistake 1: Drilling Blind: Always check what is behind the drilling surface (fuel lines, brake lines).

· Mistake 2: Ignoring Heat: Mounting too close to the exhaust/cat converter will melt the LED housing.

· Mistake 3: Overloading Circuits: Do not tap into random wires. Use a dedicated fused circuit.

· Mistake 4: Non-Waterproof Connections: Using standard electrical tape instead of heat-shrink butt connectors.

Top Rock Light Kits & Brands: Recommendations for 2026

The best rock light brands distinguish themselves through superior build quality, app reliability, and warranty support.

Based on recent industry reviews and durability tests, these are the top contenders:

1. Diode Dynamics (Stage Series)

· Best For: Functional brightness and durability.

· Features: High-intensity white output, modular mounting, USA-assembled.

2. KC HiLiTES (Cyclone V2)

· Best For: Versatility and ease of replacement.

· Features: Single-bolt mount, replaceable lenses, incredibly compact.

3. Rigid Industries (Rock Light Kit)

· Best For: Indestructible build quality.

· Features: Polycarbonate lens, IP69K rating, high-power consumption.

4. Oracle Lighting (ColorSHIFT)

· Best For: Show trucks and RGB customization.

· Features: Massive color spectrum, music sync, magnetic mounting options.

Advanced Rock Light Setups: Syncing with Other Systems

Modern rock lights can integrate with your truck's turn signals, brake lights, and courtesy approach lighting.

· Turn Signal Sync: Amber rock lights flash with your indicators for side visibility.

· Brake Integration: Turn red when you stop (requires advanced controllers).

· Door Assist: Automatically turn on white light when the door opens (dome light wire tap).

· Smart Home Links: Emerging tech allows vehicle lighting to be controlled via home automation for driveway security.

The Evolution of Truck Lighting: Trends for 2026 and Beyond

Future rock lights will feature AI-driven adaptive brightness and seamless integration with vehicle infotainment systems.

As we move toward 2026, expect truck accessory lighting to become smarter.

· Adaptive Output: Sensors that dim lights automatically when on pavement to prevent glare.

· IoT Integration: Voice control via phone assistants ("Hey Google, turn on rock lights").

· Efficiency: New LED chips delivering 200+ lumens per watt.

· Wireless Power: Reduced wiring harnesses through localized wireless power hubs.

Ensuring Longevity: Maintenance and Troubleshooting

Regular cleaning and connection inspection are vital to keep your rock lights functioning in mud, snow, and salt environments.

· Cleaning: wipe lenses with a microfiber cloth after every mud run. Mud cakes act as insulation, overheating the LEDs.

· Corrosion Check: Inspect ground points annually. Rust is the enemy of 12V electronics.

· Lens Polishing: If polycarbonate lenses haze over, use a headlight restoration kit to restore brightness.

Legal Considerations for Rock Lights: What You Need to Know

Rock lights are generally legal for off-road use, but using colors (red/blue) or flashing patterns on public roads is strictly illegal.

Laws vary by state, but general rules apply across the US:

· Off-Road: Anything goes. Flashers, strobes, and RGB are fine.

· Public Roads:

Prhibited: Flashing lights, rotating patterns, Red (forward-facing), and Blue (reserved for police).

Permitted (Some States): Steady Amber or White underglow, provided the source bulb is not visible.

· Advice: Always wire your lights to a switch that can be killed instantly. Use "Pure White" or "Amber" mode if you must have them on while driving (check local state statutes first).

Frequently Asked Questions

What are rock lights commonly used for on trucks?

Rock lights are primarily used to illuminate the ground under and around a truck, enhancing visibility for off-road driving, especially at night. They also serve an aesthetic purpose, adding customizable underbody glow for show trucks.

How many rock lights do I need for my truck?

The ideal number typically ranges from 4 to 8 pods for most trucks. A 4-pod kit covers the wheel wells, while an 8-pod kit adds coverage for the rocker panels and bumpers.

Can I install rock lights on my truck myself?

Yes, LED rock lights installation is a popular DIY project. It typically requires basic hand tools, some wiring knowledge, and careful planning of mounting locations.

Are rock lights legal for on-road use?

Using flashing, red, or blue rock lights on public roads is illegal in most US states. White or amber non-flashing underglow is permitted in some regions, but always check local laws.

Do rock lights drain a truck's battery quickly?

Modern LEDs are energy-efficient, but leaving them on overnight will drain the battery. Always wire them to a switched source or use a controller with a low-voltage cut-off feature.
