How to Install LED Light Bars: A Complete Step-by-Step Guide by BLIAUTO

LED light bars have become one of the most popular vehicle upgrades for off-road enthusiasts, work trucks, and outdoor adventurers. Known for their high brightness, durability, and energy efficiency, LED light bars dramatically improve visibility in dark or challenging environments.

At BLIAUTO, we design and supply reliable automotive LED lighting solutions for customers who demand performance and longevity. In this guide, we’ll explain how to install LED light bars correctly, from choosing the right product to wiring, mounting, and safety considerations. We’ll also answer common questions to help you avoid mistakes and get the best results.

What Is an LED Light Bar?

An LED light bar is a linear lighting unit made up of multiple light-emitting diodes housed in a rugged aluminum casing. Compared with traditional halogen or HID lights, LED light bars offer:

l Higher luminous efficiency

l Lower power consumption

l Longer lifespan

l Better resistance to vibration, dust, and water

They are widely used on trucks, SUVs, ATVs, UTVs, agricultural machinery, construction vehicles, and emergency or utility fleets.

Why Install an LED Light Bar?

Improved Visibility and Safety

LED light bars provide powerful, uniform illumination, helping drivers detect obstacles, terrain changes, and hazards earlier—especially in off-road or low-light conditions.

Energy Efficiency

LED technology delivers more light using less electricity. According to the U.S. Department of Energy, LED lighting is significantly more energy-efficient and longer-lasting than traditional lighting technologies, making it a smart choice for both commercial and vehicle applications.
Authoritative reference:
https://www.energy.gov/femp/articles/take-five-buying-energy-efficient-lighting

Durability for Harsh Environments

High-quality LED light bars, like those from BLIAUTO, are designed with sealed housings and high IP ratings (IP67 or IP68), ensuring reliable performance in rain, dust, mud, and extreme temperatures.

Choosing the Right LED Light Bar

Before learning how to install LED light bars, it’s important to choose the right one for your needs.

Length

LED light bars typically range from 6 inches to over 52 inches. Longer light bars provide wider and farther illumination, but you must ensure proper fitment on your vehicle.

Beam Pattern

l Spot Beam: Long-range, focused light for high-speed driving

l Flood Beam: Wide-angle light for close-range visibility

l Combo Beam: A mix of spot and flood beams, ideal for most users

Brightness (Lumens)

Brightness is measured in lumens. While higher lumens mean more light output, beam pattern and mounting position are just as important for effective illumination.

IP Rating

For outdoor and off-road use, an IP68-rated LED light bar is recommended for maximum protection against water and dust.

Tools and Materials Needed

To install an LED light bar properly, prepare the following tools and components:

l LED light bar (BLIAUTO recommended)

l Mounting brackets

l Wiring harness with relay and fuse

l On/off switch

l Socket and wrench set

l Drill (if required)

l Zip ties and electrical tape

l Safety gloves and eye protection

Safety Considerations Before Installation

l Disconnect the vehicle battery before wiring

l Keep wires away from hot or moving components

l Secure all wiring to prevent chafing

l Follow local laws regarding auxiliary lighting

In many regions, LED light bars must be turned off or covered when driving on public roads.

Step-by-Step: How to Install LED Light Bars

Step 1: Select the Mounting Location

Common mounting locations include:

l Front bumper

l Grille

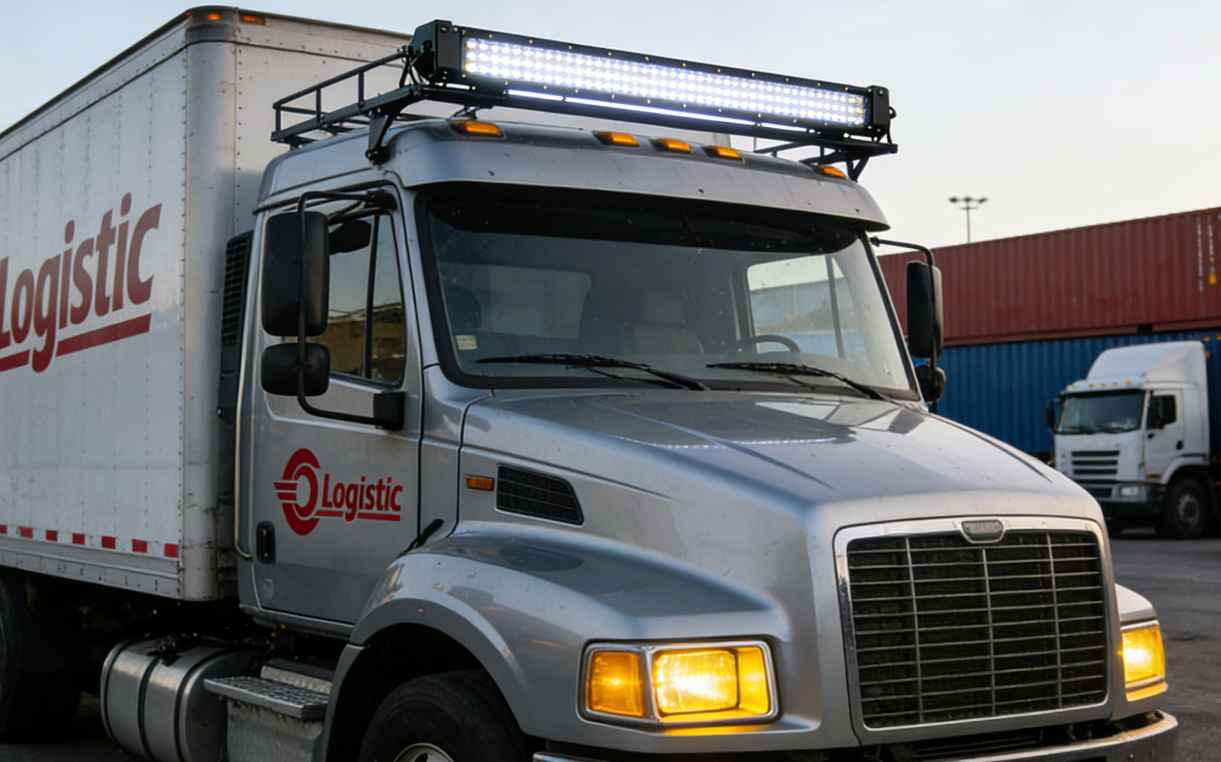

l Roof rack

l Hood mounts

Choose a location that offers solid support and optimal light projection.

Step 2: Mount the Light Bar

Attach the mounting brackets to the LED light bar, then secure it to the vehicle. Leave bolts slightly loose to allow for angle adjustment.

Step 3: Adjust the Angle

Angle the light bar slightly downward to reduce glare and maximize usable light on the road or trail.

How to Wire an LED Light Bar

Proper wiring is critical for safety and performance.

Basic Wiring Components

Most LED light bars use a relay wiring harness that includes:

l Power wire (battery positive)

l Ground wire

l Relay

l Fuse

l Switch wire

Wiring Steps

l Connect the positive wire to the battery terminal

l Attach the ground wire to a clean metal surface

l Route the switch wire into the cabin

l Install the switch in an accessible location

l Secure all wiring with zip ties

Always double-check connections before reconnecting the battery.

Common Installation Mistakes to Avoid

l Skipping the relay or fuse

l Poor grounding

l Incorrect beam angle

l Over-tightening mounting bolts

l Routing wires near exhaust components

Avoiding these mistakes will extend the lifespan of your LED light bar and ensure reliable operation.

Maintenance Tips for LED Light Bars

To keep your BLIAUTO LED light bar performing at its best:

l Clean lenses regularly to remove dirt and debris

l Inspect wiring connections periodically

l Check mounting hardware after off-road use

l Avoid directing high-pressure water at seals

Frequently Asked Questions (Q&A)

Q1: Can I install an LED light bar myself?

Yes. With basic tools and a wiring harness, most installations can be completed in 1–2 hours.

Q2: Will an LED light bar drain my battery?

No. When wired correctly with a relay and switch, LED light bars are energy-efficient and safe for vehicle electrical systems.

Q3: Are LED light bars street legal?

Regulations vary by location. Many regions require auxiliary lights to be turned off or covered on public roads.

Q4: What beam pattern is best for general use?

A combo beam is the most versatile option for mixed driving conditions.

Q5: Why choose BLIAUTO?

BLIAUTO LED light bars are built with premium components and strict quality control and are designed for durability, performance, and value.

Final Thoughts

Learning how to install LED light bars allows you to enhance your vehicle’s visibility, safety, and functionality with confidence. By choosing the right product, following proper installation steps, and observing safety guidelines, you’ll enjoy powerful and reliable lighting for years to come.

For dependable, high-performance LED lighting solutions, BLIAUTO is your trusted partner.
