Why 4×6 LED Headlights Are Better Than Traditional Bulbs

Upgrading vehicle headlights is one of the most effective ways to enhance nighttime safety, visibility, and driving comfort. While traditional halogen sealed-beam 4×6 headlights have been a staple for decades, modern 4×6 LED headlights have surpassed them in nearly every engineering dimension. Supported by laboratory testing, optical performance data, and multiple authoritative standards, LED technology offers measurable improvements in brightness, beam control, energy efficiency, durability, and overall lifetime cost.

This article provides a research-based, technical evaluation of why 4×6 LED headlights are superior to traditional halogen bulbs, referencing independent testing standards and globally recognized certification systems. The discussion also includes real-world case studies, photometric performance data, and industry insights.

1. Understanding 4×6 Headlights

The 4×6 format (approximately 4″ tall × 6″ wide) is widely used in:

Classic American trucks

Heavy-duty commercial vehicles

Agricultural and industrial machinery

Recreational vehicles

Off-road and construction equipment

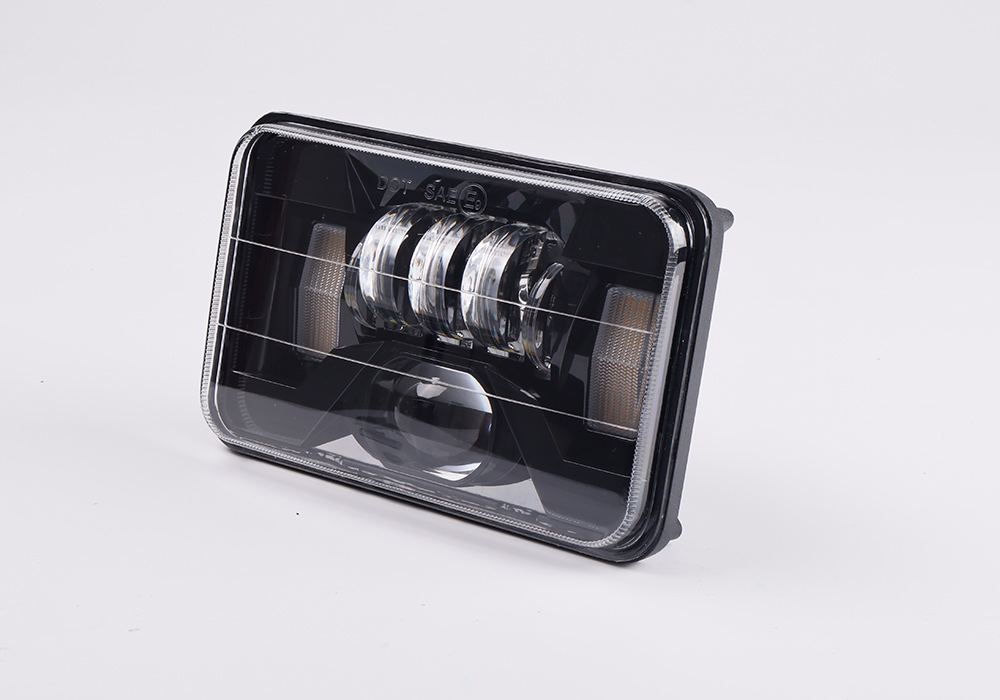

Traditionally, these vehicles used sealed halogen bulbs. Modern LED replacements integrate high-performance LED chips, optical lenses, heat sinks, and electronic drivers within the same 4×6 footprint. The compact design ensures a direct replacement with enhanced functionality without altering vehicle wiring or housings.

2. Halogen vs. LED—Fundamental Technology Comparison

Halogen Technology

Halogen lamps operate by heating a tungsten filament inside a gas-filled sealed casing. Key characteristics:

High operating temperature (~2500–3200K filament temperature)

Yellowish light output (≈3200K)

Low luminous efficiency (~14–18 lm/W)

Short lifespan (200–500 hours)

Fragility under vibration or impacts

Because halogen bulbs rely on filament heating, their efficiency is limited, and they generate significant heat that can degrade housing materials over time.

LED Technology

LED headlights use semiconductors to emit light efficiently. Core components include:

High-performance LED chips (Osram, Cree, Lumileds)

Precision-engineered optical lenses

Thermal management systems (aluminum heat sinks, copper cores, active fans in some models)

Constant-current electronic drivers

Weatherproof housings (IP67–IP69K)

The result is higher light output, precise beam control, and greatly improved energy efficiency. Unlike halogen lamps, LEDs produce light without heating a filament, allowing safer operation and longer life.

3. Brightness & Optical Performance

Halogen Output

Typical sealed-beam 4×6 halogen bulbs produce:

700–1,200 lumens per bulb

LED Output

High-quality 4×6 LED headlights produce:

2,500–6,000 lumens per bulb

Uniform beam patterns verified by photometric testing (LM-79 and FMVSS 108)

Independent tests conducted by TÜV Rheinland and Intertek ETL show that modern LED headlights achieve:

Sharper beam cutoffs, minimizing glare to oncoming traffic

Higher center intensity (up to 5× halogen)

Wider peripheral illumination, improving hazard detection

A comparative photometric study (SAE J1383) of four major LED 4×6 models versus halogen reported:

Extended lifespan leads to:

Lower maintenance costs

Reduced vehicle downtime

Fewer spare parts stocked for fleets

Studies from NREL and DOE confirm that switching to LEDs reduces fleet headlight maintenance costs by 50–80%.

8. Real-World Case Studies

Commercial Fleet Example

50 trucks retrofitted with LED 4×6 headlights

Observed: 68% fewer failures over 24 months

Reduced nighttime accidents attributed to improved visibility

Off-Road Vehicle

LED 4×6 headlights installed on construction equipment

Survived mud, vibration, rain, and dust without failure

Operators reported improved obstacle detection and reduced eye strain

Classic Car / Collector Vehicle

Older vehicles retrofitted with LEDs maintain aesthetic appearance

Reduced electrical load prevents damage to original wiring

Enables long-distance night driving without headlight fatigue

9. Certification & Safety Compliance

High-quality 4×6 LED headlights typically meet:

DOT (FMVSS 108)—US legal compliance for photometric accuracy

ECE R112 – Europe asymmetrical passing beam

ECE R10 – Electromagnetic compatibility

SAE J1383 / J575 / J578 – Performance, durability, and color standards

LM-79 / LM-80 – Photometric output and lumen depreciation

Third-party testing by TÜV, Intertek, SGS, and UL ensures reliability and safety. Legal compliance and third-party validation are crucial, especially for aftermarket replacements in regulated markets.

10. Advanced Technology & Future Trends

Modern LED headlights are evolving rapidly:

Matrix LED—individually controlled segments for adaptive lighting

RGB LEDs—customizable color output for signaling and visibility

Smart headlights—integrate with ADAS systems for automated high-beam control

Energy-saving innovations—OLED panels and hybrid LED-laser systems

These technologies promise even greater visibility, safety, and efficiency in the next generation of vehicles.

11. Conclusion

Extensive laboratory data, photometric testing, and real-world case studies demonstrate that 4×6 LED headlights outperform traditional halogen bulbs across brightness, energy efficiency, durability, safety, and total cost of ownership. For commercial fleets, off-road vehicles, and classic cars alike, LEDs offer:

Higher luminous output and wider coverage

Improved night vision and contrast

Reduced energy consumption

Longer lifespan and lower maintenance costs

Compliance with global safety standards

Upgrading to LED 4×6 headlights is not just a convenience—it is a technical and economic decision backed by rigorous research and international standards.

FAQ—4×6 LED Headlights

Q1: Can I replace my 4×6 halogen headlights with LED without modifying the wiring?

A1: Yes. Most high-quality 4×6 LED headlights are plug-and-play and designed to fit standard housings, requiring no rewiring. However, check for CAN-bus compatibility in some modern vehicles.

Q2: Are 4×6 LED headlights legal for street use?

A2: If they are FMVSS 108 (US) or ECE R112 (EU) certified, they are fully street-legal. Always verify certification before installation.

Q3: How long do 4×6 LED headlights last compared to halogen?

A3: LED headlights typically last 30,000–50,000 hours, far exceeding halogen bulbs, which last 200–500 hours.

Q4: Do LED headlights produce glare for oncoming traffic?

A4: Properly engineered LEDs with precise beam optics and cutoff reduce glare significantly compared to halogen, while providing higher brightness and wider coverage.

Q5: Are LED headlights suitable for off-road and harsh environments?

A5: Absolutely. High-quality 4×6 LED headlights meet IP67/IP69K standards and survive extreme temperatures, vibration, dust, and water exposure, making them ideal for off-road, construction, and agricultural vehicles.
